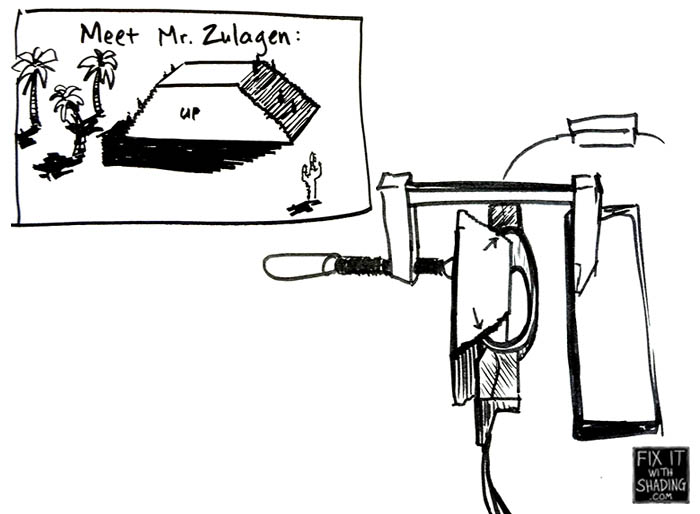

I almost broke my brain making zulagens. Zulagens are little helpers that redirect clamping force to where you want for glue-ups. Here, a page out of my notes to explain how it’s used:

0104 zulagen

This zulagen pushes on the ends of the C-bout ribs, and the serrated face reduces slip during clamping. It’s important for the two sides that push the ribs to be squared up nicely. Before you serrate the face, this is what you want:

0104 quiz 1

No light passing through the inside edges of your square.

But this ain’t your regular blocky block! The square reads diagonally across the reference surface (labeled “DOWN”). Sure, you can just flatten your DOWN surface and then square up each angled face individually, but why make it so easy when you can make it WAY HARDER THAN YOU NEED TO?!?!

THE ZULAGEN PUZZLE

Turn on your planing brain, it’s time to figure out how to square up the two angled faces with minimal planing.

Based on the light passing under the edge of the square, where should you remove material if you wanna get the job done in one go? Each question has ONE SINGLE ANSWER ONLY!

EXAMPLE

Let’s do the first one together:

0104 quiz B

The face on the right is fine and good, so the answer has to be A or B. The other answers would affect the squareness of the right face (Remember? Square goes diagonal on reference surface). The left face is reading bigger than 90, so you want to decrease the angle. The right answer is B.

Okay, you’re on your own now. Hover over the image for the answer. Remember, pick only one.

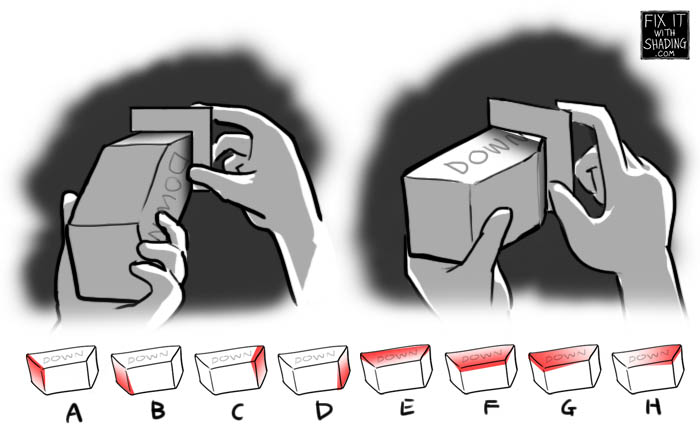

1.

Get warmed up with this one, which is similar to the example.

zulagen mental rotation planing puzzle 1

2.

Now for the good stuff.

0104 quiz 2

3.

0104 quiz 3

4.

0104 quiz 4

So, how’d you do? Comment below if you want to brag (or whimper, or correct me, or point out some technicality that invalidates the whole thing).
