Baby Plane Making, part 1

A trustworthy new brass fingerplane will cost you some $50-$70. You need a few different sizes, times two, for flat-bottom and round-bottom. That’s a lot of money.

So make your own out of wood! I love wooden fingerplanes – they are lighter, wooden tools feel nicer in your hand, and they sound a little different from the brass ones.

Here’s what I’ve learned from making my 3 wooden planes. This is a general post, and I’ll go into more detail over the next couple posts.

The type of plane we’re making here is based on the sandwiched Krenov style / crosspin + wedge / whatever you want to call it.wooden finger plane exploded diagram

Ingredients

  1. BLADE. This is your constant. You will build your plane based on the width and thickness of your blade. The sizes we’re working with at school are 3/8″, 1/2″, and 1″ wide, all O2 untempered steel stock that we have to cut, shape, harden and temper ourselves.
  2. BODY WOOD. Something stable and not too soft. Since we are violin makers, maple is plentiful and will do fine (but maybe don’t use that pink streaky low-density stuff we get for our first instrument). Grain orientation for the body is not crucial for tiny planes, but I’ll go into further detail on that in a future post.
  3. SOLE WOOD. If you can manage it, get some quartersawn very hard wood for the sole. Some folks are using bubinga, ipe, ironwood, ebony, rosewood, etc. Most of the dense, tight-grained tropicals are supposed to work well for this, though I did make one out of purpleheart and it turned out to be surprisingly/disappointingly mushy! Keep a little extra of this sole wood for the wedge. Straight grain will make life easier but if it’s interlocking, you’ll live.
  4. CROSS PIN. Use a metal rod of some sort. Make sure you have an appropriate drill bit for it.

Design Considerations

Plane making is really not that difficult. If you haphazardly slap some wood together, chisel out an opening, pin it, and stick a wedge and blade in it, you’ll probably have a functional plane. But if you plan ahead, these little points could make the difference between a plane that functions and a plane you loooove.



On any plane, the area right in front of the throat takes the most wear.

throat wear finger plane

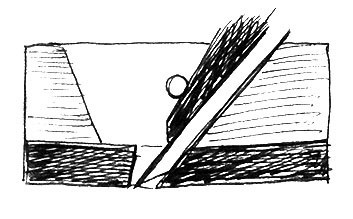

You need to find a balance between supporting that area, and having space to relieve wood shavings. On a small plane, the space for chip relief fills up very very fast, especially if you tend to stick your finger in it.

chip jamming finger plane ergonomics

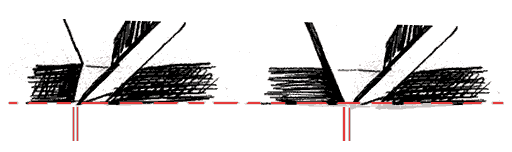

As you redress your plane, the throat will get larger and larger, so consider ways to minimize that. In violin making, finger planes are used for arching, but they do not produce the finished surface, so a tiny throat (which is supposed to reduce tear-out) is not as important as it would be on, say, a smoothing plane. Still, a giant throat on any plane disturbs me… throat opening from redressingFor a small finger plane, if you keep your plane sole reasonably thick, this configuration is my happy medium for achieving a roomy chip receptacle and well-supported throat that will stay somewhat small with each redressing. chip relief strong throatMy finger planes are mostly for arching and/or some edge work, so I’m just sticking with the traditional 45° bed angle, blade bevel down. Low angle is supposedly better for cutting endgrain, high angle is supposedly better for figure.

Cross pin placement should not be mindlessly done. Factoring in blade thickness and wedge shape, you’ll end up a line of acceptable cross pin placement. Again, you’ll have to strike a balance. The lower you place the pin, the better the support near the cutting edge, which should help reduce blade chatter. Don’t go too close though, or your wedge will have less room to do its job without getting in the way of chip flushing.

The wedge pushes up on the pin pretty forcefully, so consider your final shape and make sure you have enough meat above the pin.

Consider how you tend to grip your finger plane. I hold really really tiny tiny planes a little differently from just kinda tiny planes. Consider how the final shape of your plane and your grip on it could affect some of the other design points.





Next post will be on actual construction.

I’d like to give a little shout out to my friend David Finck, who I met at Oberlin. He is the author of Making & Mastering Wood Planes, which would make an excellent gift for any of your woodworking or luthier plane nerd friends.

Advertisements

Cello Arch Reading

I’m shaping the arch on my cello. As with drawing, I have a little problem where I have my face is right up against the workpiece. It’s always good to step back and get a macro reading of the shadows to judge where to scrape next. On cello this is harder to do at your desk unless you have extendable arms (which I unfortunately do not).

violin arching review

Fortunately there is a very bright light (the sun) and a mirror (our front door) outside. Everyone passing by on Oakton at 5:30pm today would have seen me holding my cello plate up to the school, Simba-style.

chicago school of violin making cello plate

I love the hard shadows from the sun.

cello maple plate arch shadow animation

Keep the centerline of the plate at the same angle of the sun for a very unforgiving reading of arch symmetry (looks like I still have a little work to do):

chicago school of violin making, looking at cello plate arch on oakton

The Ultimate Glue Test

I have a backlog of stuff I should post about. Today, no comic, but here’s something I did in April, explained in excessive detail.

The short version:

We tested different ratios of glue to water, glued a bunch of blocks together, and broke ’em the next day. Some broke cleanly on the joint, some vaguely on the joint, and some broke elsewhere.

The long version:

Questions:

In what proportions should we mix hide glue? Most will say it depends on what you’re gluing. For gluing a top on, some folks go for something a little weaker, because that top should come off cleanly for repairs. But for a center joint, no one wants that to come apart ever.

For a joint to come apart “cleanly” implies the joint is weaker than the wood. If surrounding wood breaks before the joint does when evenly stressed, we can assume the glue joint is stronger than the wood.

At school we are taught to cover the glue crystals twice over with water. Some people say add water until the crystals are just covered. Others give ratios by mass. What kind of results do these guidelines produce, and what are the percentage thresholds that give clean breaks vs. partial breaks vs. breaks next to the joint?

Is higher concentration always stronger? Does thicker glue have workability issues that adversely affect the strength of the final joint?

Procedure:

Glue: Milligan & Higgins, 192 gram strength. It’s the rather murky stuff that the Chicago School has been using for a while now.

Mixing: The percentages I chose are supposed to approximate visual ratios by volume, because we are used to just eyeballing it at school. We’ve been taught to add water to cover the glue flakes twice over (in other words, 1:2 visual ratio), so for this test, I used a visual ratio of 1:1 for the upper limit (weighing out at 39% glue) and 1:3 for the lower limit (at 11%, that is definitely too watery).

sample number visual ratio (volume) % by mass glue water total
1 ~ 1:1 39% 5.0g 7.8g 12.8g
2 35% 5.0g 9.3g 14.3g
3 31% 5.0g 11.1g 16.1g
4 27% 5.0g 13.5g 18.5g
5 23% 5.0g 16.7g 21.7g
6 ~ 1:2 19% 5.0g 21.3g 26.3g
7 15% 5.0g 28.3g 33.3g
8 ~ 1:3 11% 5.0g 40.5g 45.5g

I put 5g of dry hide glue in each jar, then added water to make the desired ratios for testing. I waited about half an hour before putting the jars in the hot water (~140ºF).

8 jars of hide glue with different water:glue ratios

8 jars of hide glue flakes dissolving in water. Jar 1 is 39% glue (by mass), jar 8 is 11% (ridiculously watery…)

Joint samples: I thicknessed a board of some riftsawn softwood (pine?) to about 12mm. I ripped the board in half, and planed the two halves side by side with a strong hollow. I labeled and sawed the boards into 8 pairs to glue back together.

For each pair, I applied the appropriate glue sample on both jointing surfaces together, closed them together, placed them on glass, and drove a wedge between one side and a fence to provide some clamping force. The time elapsed between applying glue and clamping was around 10 seconds each.

wood samples joined together with different ratios of hide glue

All 8 samples came from one board, which was ripped lengthwise, planed side by side, then chopped into 8 pairs, and reglued.

I left them to dry overnight before handling (~16 hours). I planed them to the same thickness and cut them to the same height, hopefully eliminating any bias from unevenness. All the joints looked good – no glue lines, no gaps.

Final dimensions of each sample before breaking: 12mm x 140mm x 50mm

The Break Test: We broke each piece by increasing pressure in the vise with a jig. The jig had to be modified a few times because I didn’t anticipate how much the wood could deform before breaking.

3 breaking 128

Our breaking jig got modified 3 times because we didn’t anticipate just how flexible those pieces of wood were.

Everyone played with each jar of glue to hypothesize how each consistency would behave before we broke them. A big point of the test was to see how our perception of glue would line up with the results.

Results:

Jar 1 (39%) and Jar 2 (35%) produced breaks away from the joint.

Jar 3 (31%), Jar 4 (27%) and Jar 5 (23%) gave partial breaks.

We consider Jar 6 (19%) to be a clean break, though a few pieces at the edge of the joint did stick.

Jar 7 (15%) and Jar 8 (11%) resulted in clean breaks very quickly.

5 data sheet

> 35% broke away from the joint (suggesting the joint was stronger than the wood) 23% – 31% gave a partial break on the joint < 19% gave a clean break

Analysis: The results were more or less in line with students’ hypotheses. Most expected Jar 3 to produce a stronger joint than it did, suggesting that we can mix glue just a little bit thicker than we thought for applications where we need a strong joint. Some expected Jar 1 to produce a partial break, citing the problem of thick glue gelling up. This did not pose a problem for this particular gluing application, where the working time was about 10 seconds.

Your results may vary depending on many many factors. Your hide glue might be different. Fresh glue and glue a few days old behave differently. Working time is a big factor. The list goes on. Best thing for you would be to try it yourself!

Suggestions for follow-up tests, criticism of this test, and questions are very welcome! Comment below or on Youtube.

Zulagen hurts my brain

Hey kids! Winter break’s over, so here’s a puzzle to thaw out your brain.

You know those mental rotation exercises that are all like this:

Mental rotation exercise puzzle with Beijing's CCTV tower

Well today I give you a violin maker’s variation on that exercise.

I almost broke my brain making zulagens. Zulagens are little helpers that redirect clamping force to where you want for glue-ups. Here, a page out of my notes to explain how it’s used:

0104 zulagen

This zulagen pushes on the ends of the C-bout ribs, and the serrated face reduces slip during clamping. It’s important for the two sides that push the ribs to be squared up nicely. Before you serrate the face, this is what you want:

0104 quiz 1

No light passing through the inside edges of your square.

But this ain’t your regular blocky block! The square reads diagonally across the reference surface (labeled “DOWN”). Sure, you can just flatten your DOWN surface and then square up each angled face individually, but why make it so easy when you can make it WAY HARDER THAN YOU NEED TO?!?!

THE ZULAGEN PUZZLE

Turn on your planing brain, it’s time to figure out how to square up the two angled faces with minimal planing.

Based on the light passing under the edge of the square, where should you remove material if you wanna get the job done in one go? Each question has ONE SINGLE ANSWER ONLY!

EXAMPLE

Let’s do the first one together:

0104 quiz B

The face on the right is fine and good, so the answer has to be A or B. The other answers would affect the squareness of the right face (Remember? Square goes diagonal on reference surface). The left face is reading bigger than 90, so you want to decrease the angle. The right answer is B.

Okay, you’re on your own now. Hover over the image for the answer. Remember, pick only one.

1.

Get warmed up with this one, which is similar to the example.

zulagen mental rotation planing puzzle 1

2.

Now for the good stuff.

0104 quiz 2

3.

0104 quiz 3

4.

0104 quiz 4

So, how’d you do? Comment below if you want to brag (or whimper, or correct me, or point out some technicality that invalidates the whole thing).
